Harmonic Analyzer

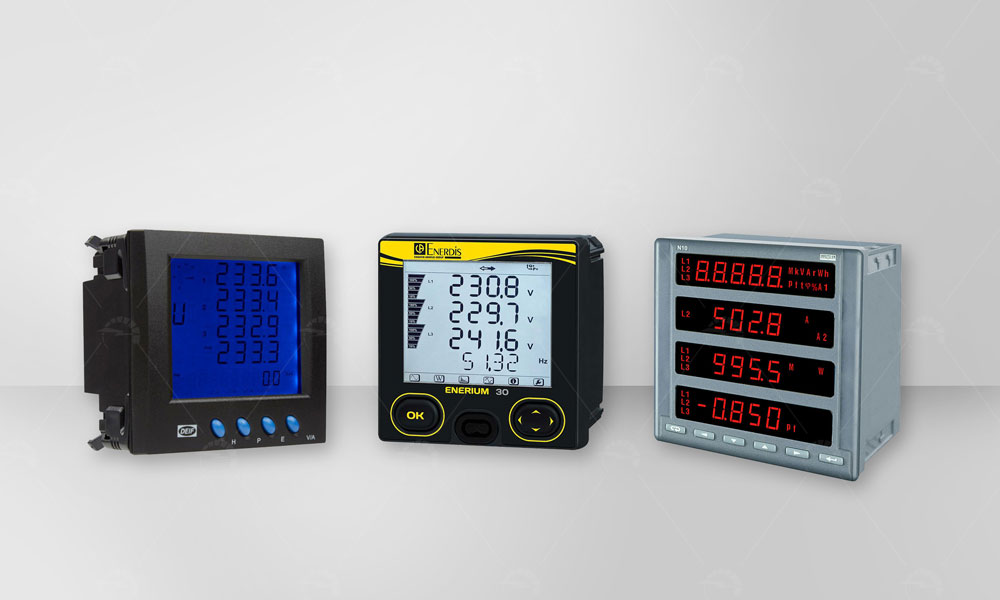

Harmonic analyzer is designed for measuring, monitoring, management and analysis of the electrical parameters such as voltage, current, Harmonic distortion and many power quality parameters in electrical network. Most of Harmonic analyzers, measure the electrical parameters in 3-phase 3 or 4-wire symmetrical or asymmetrical networks and monitor THD factor. Borna niroo karan company (Bornika) is an exclusive Representative of LUMEL and Enerdis Companies and representative of Contrel Company , in the fields of purchase, sales, consulting and distribution and industrial equipment and measurement equipment, including Harmonic analyzer.

Products

Multifunction meter

Model: Integra Order code: Integra 2000

The Crompton INTEGRA 2000 is a panel mounted instrument for the communication and display of electrical parameters. It combines High Accuracy measurement technology with the ease of use of a menu driven graphical display .

Show Detail

Power Analyzer

Model: Enerium Order code: Enerium 200

Digital multifunction meters and Power Analyzers from Enerdis instruments with multiple parameter measurement are world renowned in the power and energy sector . LV , MV , HV network supervision .

Show Detail

Energy and power quality monitor

Model: MAP Order code: MAP compact

The MAP COMPACT is a Class A power and energy quality analyzer which is particularly compact.

Show Detail

Three phase voltage quality analyzer

Model: MAP Order code: MAP610

The MAP 610 analyzer measures and records RMS voltage, Direct, negative-phase-sequence and homopolar voltage, Level of unbalance, Frequency, THD, Harmonics up to the 50th order, Interharmonics, Lfl, Pst and Plt flicker of HV / MV / LV electrical networks.

Show Detail

Three phase voltage/current power quality analyzer

Model: MAP Order code: MAP620

The MAP 620 analyzer measures and records RMS voltage, Direct, negative-phase-sequence and homopolar voltage,current,Power measurements (P, Q, S /PF, cos phi), Energy measurements (Ea, Er, Es), Level of unbalance, Frequency, THD, Harmonics up to the 50th order, Interharmonics, Lfl, Pst and Plt flicker of HV / MV / LV electrical networks.

Show Detail

Three phase analyzer with HF transient capture

Model: MAP Order code: MAP640

The MAP 610 analyzer measures and records RMS voltage, Direct, negative-phase-sequence and homopolar voltage,current,Power measurements (P, Q, S /PF, cos phi), Energy measurements (Ea, Er, Es), Level of unbalance, Frequency, THD, Harmonics up to the 50th order, Interharmonics, Lfl, Pst and Plt flicker of HV / MV / LV electrical networks.

Show Detail

Three Phase Power Analyzer

Model: MIC-2 MKII , MIC-2 MKII DIN Order code: MIC-2 MKII No: 1211020021 , MIC-2 MKII DIN No: 1211020022

The MIC-2 MKII multi-instrument is a microprocessor based measuring unit providing measurement of most electrical quantities on a 2- or 3-phase electric energy distribution network. MIC-2 MKII can be used as a data logging device for an intelligent Power Distribution System or Plant Automation System. All measurements are monitored and data is available via the RS-485 Modbus port. Other communication types as Ethernet (Web page, TCP/IP Mod-bus and emails transfer) and Profibus DP are available options. True RMS values are measured with/without neutral and with both balanced and unbalanced load.

Show Detail

Enerium 30 power monitor

Model: Enerium Order code: Enerium 30

The ENERIUM30 power monitor is the simple, high-performance model in the ENERIUM range, designed for general applications. The built-in Modbus RS485 output allows processing and remote operation of the product.

Show Detail

Enerium 50 power monitor

Model: Enerium Order code: Enerium 50

The ENERIUM50 power monitor helps to optimize energy management by recording the consumption monitoring data and the load curve.

Show Detail

Enerium 300 power monitor

Model: Enerium Order code: Enerium 300

In addition to the energy management and supervision functions provided by traditional power monitors, the ENERIUM300 can be used for thorough analysis of the quality of your electrical energy.

Show Detail

Digital multifunction meter type MFM 6100

Model: MFM 6100 Order code: MFM 6100

Digital multifunction meters from Ziegler instruments with multiple parameter measurement is world renowned in the power and energy sector .

Show Detail

Power Quality Monitoring

Model: PQM Order code: PQM

Digital multifunction meters and Power Quality Monitors PQM from Ziegler instruments with multiple parameter measurement is world renowned in the power and energy sector . multi-function panel mount power quality monitor which measures , calculates and displays major , electrical parameters of three phase power system .

Show Detail
