Service Outlet

Underfloor box systems - service outlets - are suitable for installation near workplaces of electrical devices in duct systems as well as in raised and cavity floors. square , rectangular and round designs are available. Bornika is the exclusive agent of OBO Bettermann in the fields of consultation, sales and distribution of power industry products including Service Outlet is active.

Products

Service Outlet with Handle Clamp

Model: GES2 Order code: GES2 U , GES2 DB

Service outlet with handle clamp for up to 3 individual Modul 45 devices in one UT3 universal support, use in duct systems and system floors. Also to be used in conjunction with the MT mounting support. The number of installable accessories depends on the type of accessories.

Show Detail

Mounting Support with Two Single Sockets

Model: MT 2BS Order code: MT 2BS 2SS0 - 7407 76 2

Mounting support with two switched single sockets for installation in installation units of nominal size 2. 90° connection direction. Sockets with increased touch protection. With screw connection, 3-pole, 13 A, 250 V~, corresponds to BS 1363.

Show Detail

Mounting Support for Data Socket Installation

Model: MT 2BS Order code: MT 2BS SS0 LJ6C - 7407 76 1

Mounting support for installation units of nominal size 2 with mounting single BS socket, type OBO, and 2 mounting openings for data sockets, type LJ6C. Direction of insertion 90°. Socket with increased touch protection. With screw connection, 3-pole, 13 A, 250 V~, corresponds to BS 1363.

Show Detail

Service Outlet with Handle Clamp

Model: GES4 Order code: GES4 U

Up to 4 installation devices with 50 mm central plate can be inserted. Service outlet with handle clamp for up to 6 individual Modul 45 devices in 2 UT3 universal supports, use in duct systems and system floors.

Show Detail

Stainless Steel Service Outlet with Handle Clamp

Model: GES4M Order code: GES4M-2 10U

Up to 4 installation devices with 50 mm central plate can be inserted. Service outlet with handle clamp for up to 6 individual Modul 45 devices in 2 UT3 universal supports, use in duct systems and system floors. Locking ladder made of galvanised sheet steel.

Show Detail

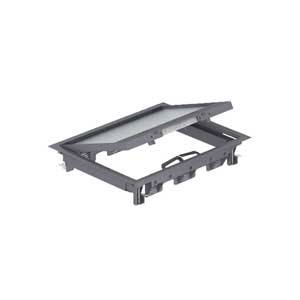

Service Outlet with Locking Slider

Model: GES4-2U10T Order code: GES4-2U10T 7011 , GES4-2U10T 9011 , GES4-2U10T 1019

Service outlet with locking slider for up to 6 individual Modul 45 devices in 2 UT3 universal supports, use in duct systems and system floors. Floor covering recess in the hinged cover pre-adjusted to 5 mm, if necessary adjustable to 3, 8 or 10 mm.

Show Detail

Inspection Cover

Model: ZES4 Order code: ZES4-2 U10T 7011 , ZES4-2 U10T 9011 , ZES4-2 U10T 1019

Draw box insert for blanking locking of a square mounting opening of nominal size 4 in trunking systems and system floors. Floor covering recess is set to 5 mm on delivery, if necessary adjustable to 3, 8 or 10 mm.

Show Detail

Service Outlet with Handle Clamp

Model: GES6 Order code: GES6 U

Also to be used in conjunction with the MT mounting support. The number of installable accessories depends on the type of accessories. Service outlet with handle clamp for up to 9 individual Modul 45 devices in 3 UT3 universal supports, use in duct systems and system floors.

Show Detail

Service Outlet with Locking Slider

Model: GES6-2U10T Order code: GES6-2U10T 7011 , GES6-2U10T 9011 , GES6-2U10T 1019

Service outlet with locking slider for up to 9 individual Modul 45 devices in 3 UT3 universal supports, use in duct systems and system floors. Floor covering recess in the hinged cover pre-adjusted to 5 mm, if necessary adjustable to 3, 8 or 10 mm.

Show Detail

Stainless Steel Service Outlet with Handle Clamp

Model: GES6M-2 Order code: GES6M-2 10U

Service outlet with handle clamp for up to 9 individual Modul 45 devices in 3 UT3 universal supports, use in duct systems and system floors. Locking ladder made of galvanised sheet steel .

Show Detail

Inspection Cover nominal size 6

Model: ZES6 Order code: ZES6-2 U10T 7011 , ZES6-2 U10T 9011 , ZES6-2 U10T 1019

Junction box insert for blank closing of a rectangular mounting opening of nominal size 6 in an underfloor duct or trunking system or in raised floor. Polyamide floor covering profile. Recess is 5 mm, if necessary, adjustable to 3, 8 or 10 mm.

Show Detail

Polycarbonate Service Outlet with Handle Clamp

Model: GES9 Order code: GES9-3B U 7011 , GES9-3B U 9011 , GES9-3B U 1019

Service outlet with handle clamp for up to 12 individual Modul 45 devices in 3 UT4 universal supports, use in duct systems and system floors. Floor covering recess in the hinged cover pre-adjusted to 5 mm, if necessary adjustable to 10 mm. Acrylonitrile butadiene styrene (ABS) is a common thermoplastic polymer.
