Rail systems

Rail systems have been designed into three category as light duty , medium duty and heavy duty for cable routing on the wall. These rails made from steel , stainless steel , strip galvanised and hot-dip galvanised . For rail systems ordering code , for example CM3518P2000FT : * section 1 : Profile type C = C profile A = Anchor profile M = Mounting profile *section 2 : Class L = light M = medium ML = medium-light MS = medium-strong S = strong SL = strong-light *section 3 : Dimensions Width x height in mm * section 4 : Perforation P = Perforated UP = Unperforated PP = Side perforation RP = Rectangular perforation BP = Breakable perforation *section 5 : Length in mm *section 6 : Surface FS = strip galvanised FT = hot-dip galvanised BK = bright A2 = stainless steel, quality A2 A4 = stainless steel, quality A4 Bornika is the exclusive agent of OBO Bettermann in the fields of consultation, sales and distribution of power industry products including Cable routing systems (LFS) is active.

Products

Light Duty Profile Rail

Model: CL2008 Order code: CL2008

Light Duty Profile Rail model CL2008 produced by OBO company has been introduced by two type perforation. The first type is breakable perforated and the second is simple perforated .

Show Detail

Steel Profile Rail

Model: CL2712 Order code: CL2712P2000FS , CL2712P2000FT , CL2712UP2000FT , CL2712UP2000BK

Steel Profile Rail series CL2712 produced by OBO bettermann company has been introduced by four models as model CL2712P2000FS made from Strip-galvanised , models CL2712P2000FT and CL2712UP2000FT Hot-dip galvanised and model CL2712UP2000BK Bright steel.

Show Detail

Galvanised Profile Rail

Model: CM3015 Order code: CM3015

Galvanised Profile Rail series CM3015 produced by OBO bettermann company designed by two models as unperforated and perforated . This profile made from steel with strip galvanised and Hot-dip galvanised .

Show Detail

Medium Profile Rail

Model: CM3518 Order code: CM3518

Medium Profile Rail series CM3518 produced by OBO bettermann company have C perforated profile design with slot width 17 mm . Also , Medium Profile Rail has been introduced in different sizes as 150 to 900 mm Length made from strip galvanised and 1000 to 2000 mm length made from stainless steel grade 304.

Show Detail

Anchor rail

Model: AM3518 Order code: AM3518

Anchor rail series AM3518 produced by OBO bettermann company With the ability to withstand the vertical 1.17 Kn force has been introduced in different sizes as 200 to 6000 mm length. Also , Anchor rail designed in two models as perforated and unperforated .

Show Detail

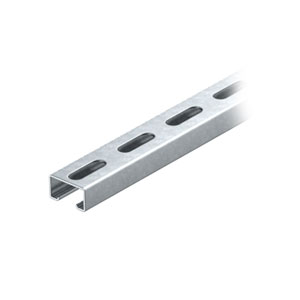

Heavy duty Profile Rail

Model: MS4022 Order code: MS4022

Heavy duty Profile Rail series MS4022 produced by OBO bettermann company With the ability to withstand the 3.21 KN on the middle and 1.18 KN at the end of profile vertical force . It design with slot width 17 mm . Also , Heavy duty Profile Rail made from Stainless steel, grade 304 , Stainless steel, grade 316 Ti and Hot-dip galvanised .

Show Detail

Mounting rail

Model: MS5030 Order code: MS5030

Mounting rail series MS5030 produced by OBO bettermann company With the ability to withstand the 7.87 KN on the middle and 3.08 KN at the end of profile vertical force . It design with slot width 22 mm . Also , Mounting rail made from Stainless steel, grade 304 , Stainless steel, grade 316 Ti and Hot-dip galvanised .

Show Detail

Hat profile rail

Model: 2069 , 2064 Order code: 2069 , 2064

Hat profile rail produced by OBO bettermann company used for equipment mounting on electrical cabinets as perforated or unperforated profile based on DIN EN 60715 standard. Hat profile rail made from steel electrogalvanised with high mechanical stability . The length of profile is 1000 , 2000 and 3000 mm.

Show Detail

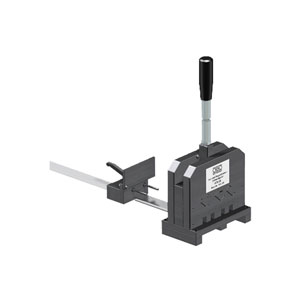

Hat and support rail cutting unit

Model: HTS 35 Order code: 1125036

With the HTS 35 hat and support rail cutting device, you can cut the four most common hat and support rail profiles (types 2069..., 46277... and 2064...) to fit and without burring in accordance with DIN 50022 and DIN 50035.

Show Detail
