Shunt

DC Shunts are used for measuring current in DC circuits. DC shunts convert high value current in DC circuits into proportional voltage drop (50mV/60mV/75mV/150mV) which can be connected of DC voltmeters to measure the high value current. Bornika is the exclusive agent of Ziegler, Lumel and Enerdis company in fields of consultation, sales and distribution of power industry products including DC Shunts .

Sub Categories
Products

DC Shunts

Model: 50mV , 60mV , 75mV ,150mV Order code: 50mV , 60mV , 75mV ,150mV

DC shunts convert high value current in DC circuits into proportional voltage drop (50mV/60mV/75mV/150mV) which can be connected of DC voltmeters to measure the high value current.

Show Detail

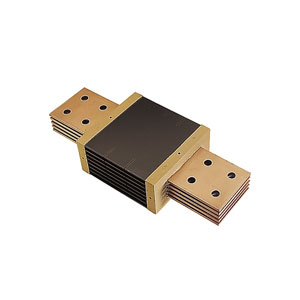

Enerdis DC current shunt

Model: 76-2, 77-2, SHMI, SHEL, SHMO Order code: 76-2, 77-2, SHMI, SHEL, SHMO

Enerdis DC current shunt used for measuring high currents in DC networks. enerdis shunts are available in five following models: 76-2:with Eye connection, Eye connection on base 77-2: with Plate connection for busbar SHMI: with Screw, Eye and to block for busbar connection SHEL: with Direct connection to measuring component Enerdis DC shunts are available in 1A to 6000A with voltage drops: 50 mV - 60 mV - 100 mV - 150 mV - 200 mV - 300 mV - 1 V

Show Detail

DC Shunt

Model: B2 Order code: Shunt- B2 060 aaaaa b c dd e f

Measuring shunts B2 type are destined to extend measuring ranges of d.c. ammeters, wattmeters and electrodynamic or ferrodynamic counters which accuracy classes are: 1, 1.5, or 2.5

Show Detail

Shunt Resistor

Model: B3 Order code: Shunt- B3 150 aaaaa b c dd e f

Measuring shunts B3 type are destined to extend measuring ranges of d.c. ammeters, wattmeters and electrodynamic or ferrodynamic counters which accuracy classes are: 1, 1.5, or 2.5

Show Detail

LUMEL Shunt Resistor

Model: B4 Order code: Shunt- B4 050 aaaaa b c dd e f

Measuring shunts B4 type are destined to extend measuring ranges of d.c. ammeters, wattmeters and electrodynamic or ferrodynamic counters which accuracy classes are: 1, 1.5, or 2.5

Show Detail

DC Shunt Resistor

Model: B5 Order code: Shunt- B5 075 aaaaa b c dd e f

Measuring shunts B5 type are destined to extend measuring ranges of d.c. ammeters, wattmeters and electrodynamic or ferrodynamic counters which accuracy classes are: 1, 1.5, or 2.5

Show Detail

100 mV Shunt

Model: B6 Order code: Shunt- B6 100 aaaaa b c dd e f

Measuring shunts B6 type are destined to extend measuring ranges of d.c. ammeters, wattmeters and electrodynamic or ferrodynamic counters which accuracy classes are: 1, 1.5, or 2.5

Show Detail

Shunt Resistor

Model: Shunt Resistor Order code: Shunt Resistor Amps/mV

Shunts provide an accurate DC milivolt signal to drive moving-coil ammeters, overload protection and control units for higher ampere range. Shunt Resistors introduced by two generally type as 60 and 150 mV. Type 60 mV divided into A and B form. Also , Type 150mV divided into Three form as A , B and C.
