Universal Support for Device Installation

Mounting Boxes , module supports and mounting supports provide functional accessories for the installation of accessories in service outlets and cassettes. Universal Support for Device Installation includes Universal support UT3 and UT4 , Data connection modules for floor sockets , device support for CEE , partition , bridge and etc. Bornika is the exclusive agent of OBO Bettermann in the fields of consultation, sales and distribution of power industry products including Universal Support for Device Installation is active.

Products

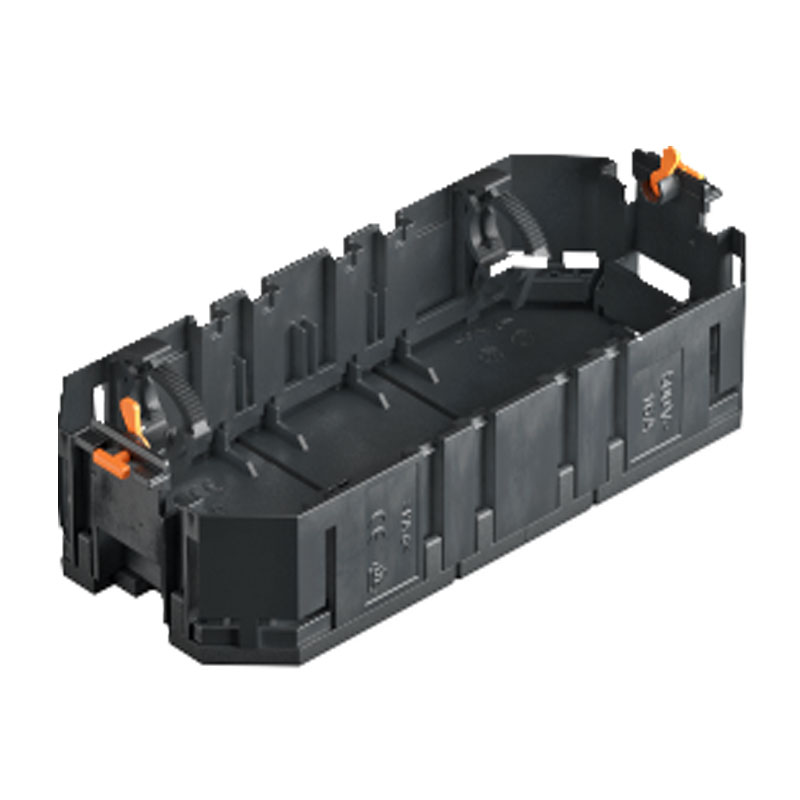

Universal support

Model: UT3 Order code: UT3 - 7408721

Universal support with two strain reliefs for electrical installation in device installation units of nominal sizes 2, R4, 4, 6 and R7. Cover plates should be ordered separately.

Show Detail

Universal support UT3 system length 165 mm

Model: UT3 Order code: UT3 45 3 - 7408723

Universal support with two strain reliefs, partition and UT 3 P3 cover plate for installation of 3 Modul 45 devices in device installation units of nominal sizes 2, R4, 4, 6 and R7.

Show Detail

Universal support UT4

Model: UT4 Order code: UT4 - 7408725

Universal support with two strain reliefs for electrical installation in device installation units of nominal sizes R7, R9 and 9. Cover plates should be ordered separately.

Show Detail

Universal support UT4 system length 208 mm

Model: UT4 Order code: UT4 45 4 - 7408727

Universal support with two strain reliefs, partition and UT 4 P4 cover plate for installation of 4 Modul 45 devices in device installation units of nominal sizes R7, R9 and 9.

Show Detail

Module support for vertical installation Modul 45 devices

Model: MT45 Order code: MT45V 0 - 7408698

Module support for the installation of up to eight Modul 45 devices in an empty standard service outlet or an empty height-adjustable cassette of nominal size 9 or R9. The module support is locked into the locking ladder.

Show Detail

Installation frame for Modul 45 devices

Model: MT45V Order code: MT45V 4 , MT45V 3 , MT45V 3+1 , MT45V 2+2

The installation frame is designed for use with 0° sockets (normal installation position, contact openings on right and left) and their use in conjunction with straight connectors (not angled connectors).

Show Detail

Device support for CEE installation without CEE

Model: GT Order code: GT2 CEE , GT3 CEE

Device support of nominal size 2 for the installation of a CEE plug connection 16 A or 32 A for installation in service outlets and cassettes of nominal size 2, 4, 6 and R7. Device support with protective housing and strain relief. Required minimum installation depth: 190 mm for mounting.

Show Detail

Device support for CEE installation with CEE

Model: GT Order code: GT2 CEE16 , GT3 CEE16

Device support of nominal size 3 with a CEE plug connection 16 A for installation in service outlets and cassettes of nominal size R7, 9 and R9. Device support with protective housing and strain relief. Required minimum installation depth: 190 mm for mounting, 160 mm for operation when an angled connector is used.

Show Detail
