Protection and Spark Gaps

Spark gap protectors are designed to isolate the electrical system components that are not connected to each other under normal operating conditions . If a lightning strike caused a surge in the electrical system components , the isolation spark gap ensures a conductive connection with same potential. Bornika is the exclusive agent of OBO Bettermann in the fields of consulation, sales and distribution of power industry products including Protection & Spark Gaps.

Products

Ex isolating spark gap

Model: Ex spark gap Order code: 923005

Ex isolating spark gaps are used when electrically conductive parts of installations cannot be directly interconnected in hazardous areas, for example, in case of cathodically protected pipeline sections.

Show Detail

Isolating Spark Gap

Model: TFS/KFSU Order code: 923023, 923021

Isolating spark gaps with plastic sheath and two stainless steel connections (Rd 10 mm).

Show Detail

Isolating Spark Gap EXFS L

Model: EXFS L Order code: 923060, 923061, 923062

Ex isolating spark gap for aboveground installation.

Show Detail

Isolating Spark Gap EXFS KU

Model: EXFS KU Order code: 923019

Ex isolating spark gap with connecting cables for aboveground and underground installation; with water-proof sheath; can be shortened for short cable lengths.

Show Detail

Isolating spark gap EXFS 100

Model: EXFS 100 Order code: 923100

Isolating spark gap for use in hazardous areas with plastic sheath and M10 threaded screws.

Show Detail

Isolating Spark Gap (ISG)

Model: EPZ 100 Order code: 509 520

Isolating Spark Gap (ISG) from Raycap, used in exposed environments and direct burial. This spark gap has been developed to prevent unsafe potential gradients from establishing between adjacent metallic structures or surfaces during a lightning discharge event.

Show Detail

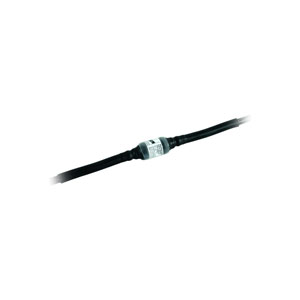

Isolating spark gap EXFS 100 KU

Model: EXFS 100 KU Order code: 923101

Ex isolating spark gap with connecting cable for aboveground and underground installation; with water-proof sheath; can be shortened for short cable lengths.

Show Detail

Protective Spark Gap

Model: DSFS Order code: 920000

Plastic-insulated protective spark gap for indirect connection of an overhead line roof pole to the external lightning protection system.

Show Detail

Voltage controlled short circuiting device

Model: VCSD 40 IP65 Order code: 923401

Voltage-controlled smart decoupling device for use in widely distributed and highly networked electrical systems which are influenced by external voltages from various sources (e.g. high-voltage systems, traction power supply systems, low-voltage systems, lightning interference).

Show Detail

EXFS Coaxial Connection

Model: NAK SN463 Order code: 999990

Coaxial connection of isolating spark gaps with a low sparkover voltage for buried lightning equipotential bonding according to IEC 62305.

Show Detail

Surge Cathodic Decoupler

Model: SCD Order code: SCD-20-100

Surge Cathodic Decoupler has been specifically designed to provide pipelines with surge, AC and DC voltage protection whilst providing low voltage DC isolation for cathodic protection.

Show Detail

Spark Gap 480 xxx OBO

Model: 480 180, 480 250, 480 350 Order code: 5240034 | 5240077 | 5240069

protection and spark gaps , explosion-proof , indirect by-passing of insulating flanges .

Show Detail
