Instantaneous relays

Instantaneous relays is supplied by Enerdis Company in different types including Monostable and Bistable. Some models are fast acting relays. Monostable: This is the most widely-used type.When a current is passed through the coil, the mobile armature actuates the contacts which change state. When the current stops flowing, the armature and the contacts return to their initial position. Bistable: This type of relay usually comprises two coils mounted opposite one another. When a current is passed through the coil, it moves the mobile armature and its contacts which are held in position by means of a magnetic or mechanical system when the coil is no longer powered. To change the position a current must be passed briefly through the other coil. Bornika is the exclusive agent of Enerdis Company in the fields of consultation, sales and distribution of power industry products including Instantaneous relays.

Products

Instantaneous relay type BIPOK

Model: BIPOK Order code: POK / POKS, BiPOK / BiPOKS,TriPOK / TRiPOKS,D-BiPOK / D-BiPOKS

Instantaneous relay type BIPOK is a Monostable relay with 5 A rated contact current. BIPOK has 4 changeover contacts. DC voltage of the coil is 24 V dc ,48 V dc or 110 Vdc.

Show Detail

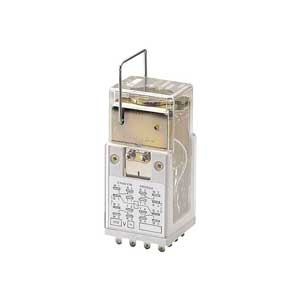

Enerdis monostable relay

Model: OK Order code: OK N, OK Fc, OK B184, OK SCd, OK SGcCd, OK SFcUIC

Enerdis monostable Type OK relay is a Monostable relay with 10 A rated contact current.Different models of this product have 4 Normally Open or Normally Closed contacts. DC voltage of the coil is 12,24,48,110,125,220 and 250 V dc.

Show Detail

Bistable relay with pulse command

Model: OKBi Order code: OKBi

Bistable relay with pulse command type OKBi is an Instantaneous relay with 4 CO( changeover) contacts. The Rated current for each contact is 10 A.

Show Detail

Monostable relay with forcibly guided contacts

Model: RGMZX Order code: RGMZyyX

Monostable relay with forcibly guided contacts is a monostable instantaneous relay and, is correspondent to EN 50205, EN 116000-3 AND EN 61373 standard. This product has 4 change over contacts and for each contact the rated current is 12 A.

Show Detail

Bistable relay with magnetic latching

Model: BAS8 Order code: BAS8 NB-A, BAS8 M-A

Bistable relay with magnetic latching type BAS8 is a Bistable instantaneous relay and has 8 change over contacts. For each contact the rated current is 10 A.

Show Detail

Enerdis Fast-acting relay

Model: RGBZ Order code: RGBZ10, RGBZ11

Enerdis Fast-acting relay type RGBZ is a Bistable relay with magnetic latching and has 3 or 4 change over contacts. For each contact the rated current is 12 A.

Show Detail

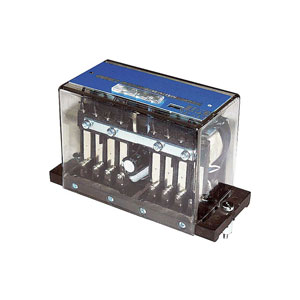

Fast-acting multicontact relay

Model: RMMZ11 Order code: RMMZ11

Fast-acting multicontact relay type RMMZ11 is a monostable instantaneous relay and has 8 change over contacts and for each contact the rated current is 10 A.

Show Detail

Monostable relay,10A, 4 CO

Model: RE3000 Order code: RE 3000, RE 3000 S, RE 3000 N

Monostable relay,10A, 4 CO type RE3000 is a monostable instantaneous relay and has 4 change over contacts and for each contact the rated current is 10 A. This relay has High reliability for intensive use in severe conditions and it can be used in energy production, power transmission and distribution parts.

Show Detail

Multicontact bistable relay

Model: RMDE Order code: RMDEx4, RMDEx2, RMDEx1

Multicontact bistable relay type RMDE is abistable instantaneous relay and has 4 to 16 change over contacts and for each contact the rated current is 10 A. Main coil of RMDE can be Autotested by auxiliary relay.

Show Detail

Bistable relay with magnetic latching

Model: RMBE Order code: RMBEx3, RMBEx5, RMBEx7

Bistable relay with magnetic latching type RMBE is an instantaneous relay and has 7 or 11 or 17 change over contacts and for each contact the rated current is 10 A.

Show Detail

Monostable relay, 12A

Model: RGME Order code: RGMEx3, RGMEx4, RGMEx5, RGMEx7

Monostable relay, 12A type RGME is an instantaneous relay and has 4 change over contacts with one NO or NC contact .For Change over contact of Monostable relay, the rated current is 12 A.

Show Detail

Multicontact relay with coil self-test

Model: RMNE Order code: RMNEx6, RMNEx7, RMNEx9

Multicontact relay with coil self-test type RMNE is a monostable instantaneous relay and includes 4, 8 or 16 change over contacts. Rated current for contacts of RMNE is 10 A.

Show Detail
