PCB Surge arrester

PCB Surge arrester specially designed for use on printed circuit boards (PCBs). This Surge arrester has a variety of bases and protection modules . Single-pole version of bases can be used for all system configurations. The compact protection modules incorporate the complete protective circuit as well as the monitoring and disconnection device. Some of the various models: - DEHNguard PCB PV SCI ... FM - DEHNguard PCB PV ... FM - DEHNguard PCB NPE (FM) - DEHNguard PCB I ... FM - Varistor-based Protection Module for DEHNguard SE CI - Varistor-based Protection Module for DEHNguard M and DEHNguard S - ... Bornika is the sales agent of DEHN, OBO Bettermann and iskra , Raycap in the fields of consultation, sales and distribution of power industry products including PCB Surge arresters.

Products

DEHNguard PCB PV SCI-FM

Model: DG PCB PV SCI 300 , DG PCB PV SCI 600 , DG PCB PV SCI 500 FM , DG PCB PV SCI 600 FM Order code: 952653 - 952651 - 952654 - 952753 - 952751 - 952754

DEHNguard PCB PV SCI-FM is single-pole base for PV SCI DEHNguard modules to be mounted on the PCBs of devices.

Show Detail

DEHNguard PCB PV-FM

Model: DG PCB PV 300 , DG PCB PV 600 , DG PCB PV 500 FM Order code: 952643 - 952644 - 952741

DEHNguard PCB PV-FM is single-pole base for DEHNguard PV modules to be mounted on the PCBs of devices.

Show Detail

DEHNguard PCB-FM

Model: DG PCB 275 , DG PCB 385 , DG PCB 275 FM , DG PCB 385 FM Order code: 952 610 - 952 614 - 952 710 - 952 714

DEHNguard PCB-FM is single-pole base for DEHNguard modules to be mounted on the PCBs of devices.

Show Detail

DEHNguard PCB NPE-FM

Model: DG PCB NPE , DG PCB NPE FM Order code: 952650 - 952750

DEHNguard PCB NPE-FM is single-pole base for DEHNguard NPE modules to be mounted on the PCBs of devices.

Show Detail

DEHNguard PCB PV I-FM

Model: DG PCB PV I 500 FM , DG PCB PV I 600 FM , DG PCB PV I 750 FM Order code: 952941 - 952948 - 952949

DEHNguard PCB PV I-FM is single-pole base with increased air clearance and creepage distance between the power contacts and the remote signalling contact that used for installation on the PCBs of devices to accommodate DEHNguard modules.

Show Detail

DEHNguard PCB PV SCI I-FM

Model: DG PCB PVSCI I 500FM Order code: 952951

DEHNguard PCB PV SCI I-FM is single-pole base with increased air clearance and creepage distance between the power contacts and the remote signalling contact that used for installation DEHNguard PV with SCI technology on the PCBs.

Show Detail

DEHNguard PCB I-FM

Model: DG PCB I 275 FM Order code: 952910

DEHNguard PCB I-FM is single-pole base with increased air clearance and creepage distance between the power contacts and the remote signalling contact that used for installation DEHNguard module on the PCBs.

Show Detail

Protection Module for DEHNguard M CI

Model: DG MOD CI 275 Order code: 952020

Protection Module for DEHNguard M CI is varistor-based protection module with 25kA max. discharge current.

Show Detail

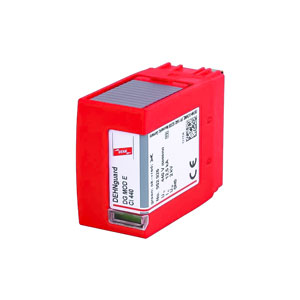

Protection Module for DEHNguard SE CI

Model: DG MOD E CI 440 , DG MOD E CI WE 440 Order code: 952926 - 952927

Protection Module for DEHNguard SE CI is varistor-based protection module with 12.5 kA nominal discharge current.

Show Detail

Protection Module for DEHNguard M (S) WE

Model: DG MOD 750 Order code: 952017

Protection Module for DEHNguard M (S) WE is varistor-based protection module with 25 kA max. discharge current.

Show Detail

Protection Module for DEHNguard M H TT

Model: DG MOD H NPE Order code: 952081

Protection Module for DEHNguard M H TT is N-PE Spark-Gap-Based protection module with 120kA max. discharge current.

Show Detail

Protection Module for DEHNguard SE H

Model: DG MOD E H LI 275 , DG MOD E H LI 1000 , DG MOD E H 1000 , DG MOD E H 1000 VA Order code: 952900 - 952907 - 952908 - 952918

Protection Module for DEHNguard SE H is varistor-based protection module with 65 kA max. discharge current.

Show Detail
