DC link cylindrical capacitors

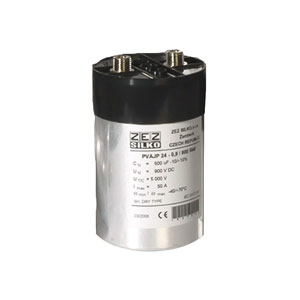

These capacitors are designed for use on DC supplies and are intended to protect the network from momentary voltage spikes and surges and for filtering out AC ripple. The self-healing capacitor elements are enclosed in a cylindrical aluminium case, which is filled with a vegetable oil based gel (resin, solid matter) that is non-toxic, biodegradable, environmentally friendly. The case is fitted with an overpressure disconnector and an M12 mounting stud, which is also used for the protective conductor connection. MKP metallized polypropylene capacitors encapsulated in Al case by polyurethan resin UL-94,V0, PCB and halogen free. Borna niroo karan company (Brnika) has the exclusive representative ZEZ SILKO company in buying, selling, consulting and distribution and industrial equipment of DC link (filtering) capacitors like as DC link cylindrical cases capacitors is active .

Products

DC link cylindrical capacitor PVAJP 24-0.8/500

Model: PVAJP Order code: PVAJP 24-0,8/500

DC link cylindrical capacitor PVAJP 24-0,8/500 designed for use on DC supplies and are intended to protect the 800V network from momentary voltage spikes and surges and for filtering out AC ripple with capacity 500µF.

Show Detail

Power Electronics Capacitor PVAJP 24-0.8/500 R45

Model: PVAJP Order code: PVAJP 24-0,8/500 R45

Power Electronics Capacitor PVAJP 24-0,8/500 R45 designed for use on Power Electronics with voltage level 800V and capacity of 500µF.

Show Detail

DC link cylindrical capacitor PVAJP 24-0.9/200

Model: PVAJP Order code: PVAJP 24-0,9/200

DC link cylindrical capacitor PVAJP 24-0,9/200 designed for use on DC supplies and are intended to protect the 900V network from momentary voltage spikes and surges and for filtering out AC ripple with capacity 200µF.

Show Detail

Power Electronics Capacitor PVAJP 24-0.92/450 R45

Model: PVAJP Order code: PVAJP 24-0,92/450 R45

Power Electronics Capacitor PVAJP 24-0,92/450 R45 designed for use on Power Electronics with voltage level 920V and capacity of 450µF.

Show Detail

Power Electronics Capacitor PVAJP 24-1/500 R45

Model: PVAJP Order code: PVAJP 24-1/500 R45

Power Electronics Capacitor PVAJP 24-1/500 R45 designed for use on Power Electronics with voltage level 1000V and capacity of 500µF.

Show Detail

DC link cylindrical capacitor PVAJP 24-1.1/330

Model: PVAJP Order code: PVAJP 24-1,1/330

DC link cylindrical capacitor PVAJP 24-1,1/330 designed for use on DC supplies and are intended to protect the 1100V network from momentary voltage spikes and surges and for filtering out AC ripple with capacity 330µF.

Show Detail

DC link cylindrical capacitor PVAJP 24-1.1/400

Model: PVAJP Order code: PVAJP 24-1,1/400

DC link cylindrical capacitor PVAJP 24-1,1/400 designed for use on DC supplies and are intended to protect the 1100V network from momentary voltage spikes and surges and for filtering out AC ripple with capacity 400µF.

Show Detail

DC link cylindrical capacitor PVAJP 24-1.1/415

Model: PVAJP Order code: PVAJP 24-1,1/415

DC link cylindrical capacitor PVAJP 24-1,1/415 designed for use on DC supplies and are intended to protect the 1100V network from momentary voltage spikes and surges and for filtering out AC ripple with capacity 415µF.

Show Detail

Power Electronics Capacitor PVAJP 24-1.1/415 R45

Model: PVAJP Order code: PVAJP 24-1,1/415 R45

Power Electronics Capacitor PVAJP 24-1,1/415 R45 designed for use on Power Electronics with voltage level 1100V and capacity of 415µF.

Show Detail

Power Electronics Capacitor PVAJP 24-1.1/450 R45

Model: PVAJP Order code: PVAJP 24-1,1/450 R45

Power Electronics Capacitor PVAJP 24-1,1/450 R45 designed for use on Power Electronics with voltage level 1100V and capacity of 450µF.

Show Detail

DC link cylindrical capacitor PVAJP 24-1.1/680

Model: PVAJP Order code: PVAJP 24-1,1/680

DC link cylindrical capacitor PVAJP 24-1,1/680 designed for use on DC supplies and are intended to protect the 1100V network from momentary voltage spikes and surges and for filtering out AC ripple with capacity 680µF.

Show Detail

DC link cylindrical capacitor PVAJP 24-1.2/100

Model: PVAJP Order code: PVAJP 24-1,2/100

DC link cylindrical capacitor PVAJP 24-1,2/100 designed for use on DC supplies and are intended to protect the 1200V network from momentary voltage spikes and surges and for filtering out AC ripple with capacity 100µF.

Show Detail
