- Model:
- DSH TNS 255 , DSH TNS 255 FM
- Request Code:
- 941400 - 941405
- Company:
- DEHN
- Country:
- Germany

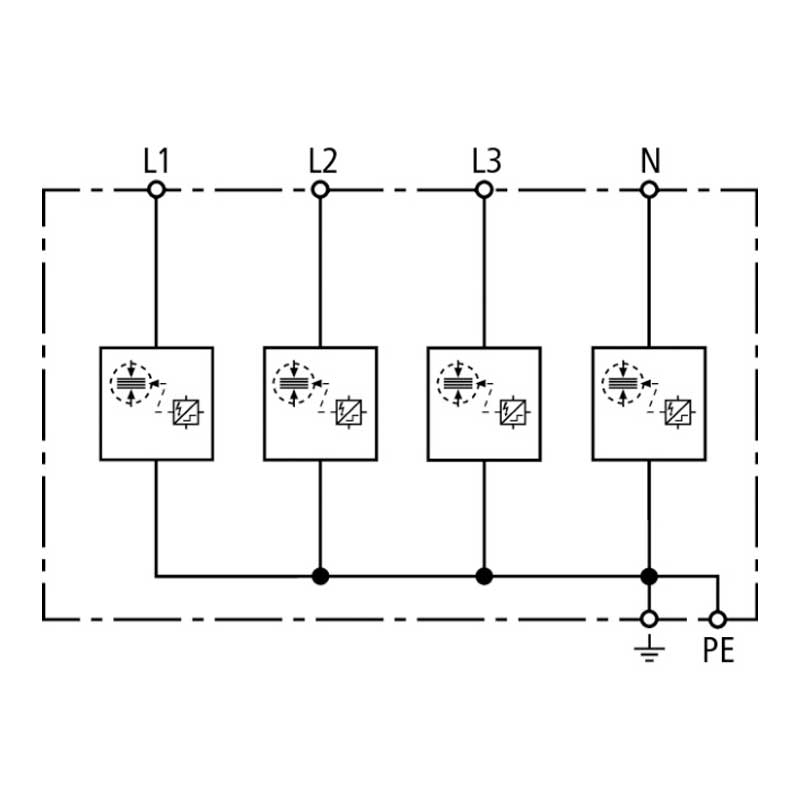

Application-optimised and prewired combined lightning current and surge arrester for TN-S systems with a nominal voltage of 230 / 400 V (4+0 configuration). Features: - Compact design due to space-saving spark gap technology with a width of only 1 module / pole - Allows compact lightning equipotential bonding including protection of terminal equipment - Operating state / fault indication by green / red indicator flag in the inspection window This product is available in 2 models: DSH TNS 255 and DSH TNS 255 FM that FM version with floating remote signalling contact. Borna niroo karan (Bornika) company is the sales agent of DEHN company in the fields of consultation , sales and distribution of surge protection, lightning protection/earthing and safety equipments.
Share in social networks
DEHNshield TNS Specification
| Dimensions | 71.6x90x65 mm |
| IP | IP 20 |
| Approximate Weight | 525 g |
| Surge arrester class | Class B+C (Type I+II ) |
| Mounting Type | DIN rail |
| Voltage protection level (Up) | ≤ 1.5 kV |
| Nominal Voltage (Un) | 230 / 400 V ac |
| Nominal discharge current(8/20) | [L-PEN]/[L1+L2+L3-PEN] : 12.5 / 50 kA |
| Nominal discharge current(10/350) | [L1+L2+L3+N-PE] :50 kA [L, N-PE] : 12.5 kA |
| Response time | ≤ 100 ns |
| maximum back-up fuse | 160 A gG |
DEHNshield TNS Catalogs
Download Catalog : DSH TNS 255 datasheet 310 KB
Download Catalog : DSH TNS 255 FM datasheet 201 KB
Download Catalog : dehn-catalogue-surge-protection
Download Catalog : Certificate 220 KB
Download Catalog : Installation Instructions 808 KB
Download Catalog : Certificate01 2286 KB
Download Catalog : VDE Certificate 596 KB
Download Catalog : CE_DSH_TNS_255 195 KB
Download Catalog : CE_DSH_TNS_255_FM 196 KB
Download Catalog : COC 20151010 E319777 Vol 1 Sec 15 178 KB
DEHNshield TNS More Description
DEHNshield TNS Price
Please call ...
