• Model:
• PI-102 | ZOT PI12
• Request Code:
• PI-102

• Company:
• Ziegler
• Country:
• England

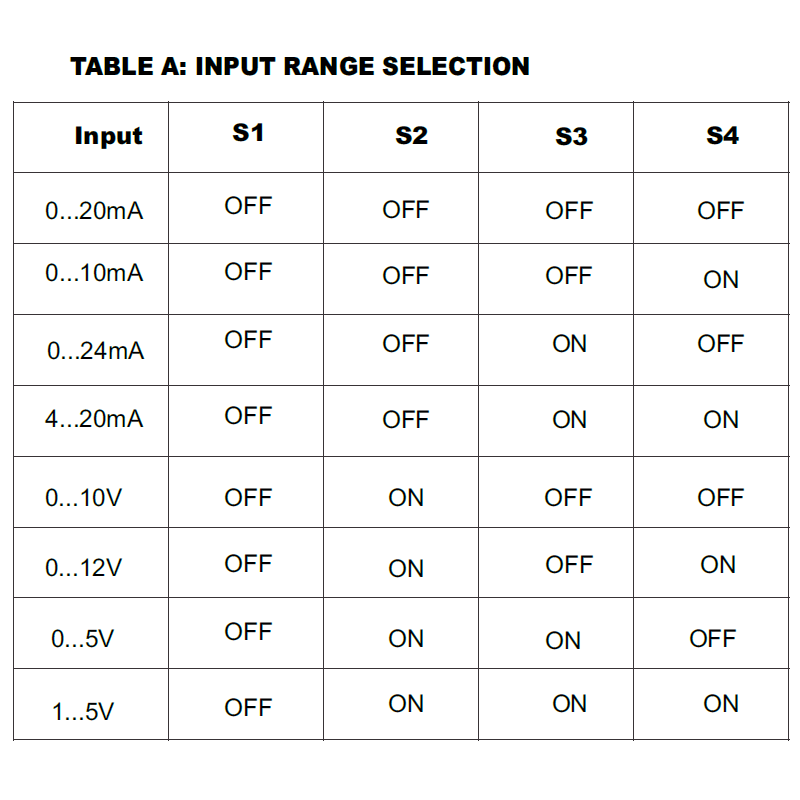

Programmable Dual output DC Isolator is purpose to electrically isolate input, outputs and power supply. The isolator fulfills all requirements and regulation concerning electromagnetic compatibility EMC and safety (IEC61326-1 and IEC 61010-1:2010). The device has one input and provides two independent outputs in an extremely small space. inputs and outputs can be configured using slide switches. When ever configuration is changed output 1 and output 2 fine adjustment must be accomplished using “Z” (Zero) and “S” (Span) potentiometers provided on front panel separately for both the outputs i.e. output 1 and output 2. Table A and B contains the switch position information for the configuration of input and output 1/output 2 respectively. Features : • Electric isolation for standard DC signals. • Solves grounding problem in meshed signal networks. • High electric isolation between input and outputs – 2.3 kV, and power supply versus all other circuits – 3.0 kV. Borna Niroo Karan (Bornika) is the exclusive agent of Ziegler in the fields of consultation , sales and distribution of power industry products including Separator Transducer products .
