Surge Arrester Class C, Type II

Visits : 945
Surge Arrester Class C, Type II

As the second phase of the protection circuit is used and the ability to resist a sudden flow of 40 kA with wave form 20/8 μs for the once and current 20 kA with waveform 20/8 μs to have repetitions. The equipment in the power distribution (power), power dividers and sub-distributors are installed. Bornika is the exclusive agent of OBO Bettermann in the fields of consultation, sales and distribution of power industry products including class C, Type II.

Products

Surge arrester V20-C 1+NPE-280 OBO

Model: V20, 280V, 1-pole+NPE for TN/TT Networks Order code: 5094650

As the second phase of the protection circuit is used and the ability to resist a sudden flow of 40 kA with wave form 8/20 μs to have repetitions. The equipment in the power distribution (power), power dividers and sub-distributors are installed.

Show Detail

MYS5 surge arrester

Model: MYS5 Series Order code: MYS5

MYS5 type over voltage protector is mainly applied to the 3nd & 4th class protection between 380V power system wire and zero to ground.

Show Detail

Surge arrester V20-C 2+NPE-280 OBO

Model: V20, 280V, 2-pole+NPE for TN/TT Networks Order code: 5094653

As the second phase of the protection circuit is used and the ability to resist a sudden flow of 60 kA with wave form 8/20 μs to have repetitions. The equipment in the power distribution (power), power dividers and sub-distributors are installed.

Show Detail

Surge arrester V20-C 3+NPE-280 OBO

Model: V20, 280V, 3-pole+NPE for TN/TT Networks Order code: 5094656

As the second phase of the protection circuit is used and the ability to resist a sudden flow of 120 kA with wave form 8/20 μs to have repetitions. The equipment in the power distribution (power), power dividers and sub-distributors are installed.

Show Detail

Surge arrester C 25-B+C 1OBO

Model: V20, 280V, 1-pole NPE for TN/TT Networks Order code: 5095606

As the second phase of the protection circuit is used and the ability to resist a sudden flow of 30kA with wave form 8/20 μs to have repetitions. The equipment in the power distribution (power), power dividers and sub-distributors are installed.

Show Detail

Surge arrester V20-C 1+NPE+FS OBO

Model: V20, 280V, 1-pole+NPE with remote signalling for TN/TT Networks Order code: 5094760

As the second phase of the protection circuit is used and the ability to resist a sudden flow of 40 kA with wave form 8/20 μs to have repetitions. The equipment in the power distribution (power), power dividers and sub-distributors are installed.

Show Detail

Surge arrester V20-C 2+NPE+FS OBO

Model: V20, 280V, 2-pole+NPE with remote signalling for TN/TT Networks Order code: 5094762

As the second phase of the protection circuit is used and the ability to resist a sudden flow of 60 kA with wave form 8/20 μs to have repetitions. The equipment in the power distribution (power), power dividers and sub-distributors are installed.

Show Detail

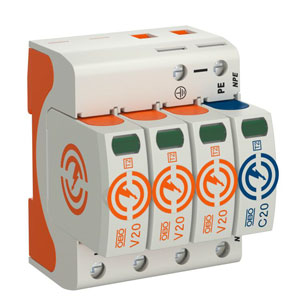

Surge Arrester V20-C 3+NPE+FS OBO

Model: V20, 280V, 3-pole+NPE with remote signalling for TN/TT Networks Order code: 5094765

As the second phase of the protection circuit is used and the ability to resist a sudden flow of 80 kA with wave form 8/20 μs to have repetitions. The equipment in the power distribution (power), power dividers and sub-distributors are installed.

Show Detail

Surge arrester V20-C 3+NPE+AS OBO

Model: V20, 280V, 3-pole+NPE with acoustic signalling for TN/TT Networks Order code: 5096397

Surge arrester , three-phase + neutral protection , with acoustic signalling , As the second phase of the protection circuit is used and the ability to resist a sudden flow of 80kA with wave form 8/20 μs to have repetitions. The equipment in the power distribution (power), power dividers and sub-distributors are installed.

Show Detail

Surge arrester V20-C 1-280 OBO

Model: V20, 280V, 1-pole for TN Networks Order code: 5094618

Arrester, single-phase protection , As the second phase of the protection circuit is used and the ability to resist a sudden flow of 20 kA with wave form 8/20 μs to have repetitions. The equipment in the power distribution (power), power dividers and sub-distributors are installed.

Show Detail

Surge arrester V20-C 2-280 OBO

Model: V20, 280V, 2-pole for TN Networks Order code: 5094621

Arrester , two-phase protection ,As the second phase of the protection circuit is used and the ability to resist a sudden flow of 40 kA with wave form 8/20 μs to have repetitions. The equipment in the power distribution (power), power dividers and sub-distributors are installed.

Show Detail

Surge arrester V20-C 3-280 OBO

Model: V20, 280V, 3-pole for TN Networks Order code: 5094624

Arrester, three-phase protection,As the second phase of the protection circuit is used and the ability to resist a sudden flow of 60 kA with wave form 8/20 μs to have repetitions. The equipment in the power distribution (power), power dividers and sub-distributors are installed.

Show Detail
