Floor Sockets and Boxes

Thanks to their elegant, discreet design, UDHOME floor sockets and floor tanks integrate themselves seamlessly into the interior architecture. When the hinged cover is closed, only the high-quality surfaces of pure stainless steel or solid brass are visible. Thanks to their stable construction, the floor sockets and floor tanks are also resistant to the everyday loads in homes, offices and administrative areas. Bornika is the exclusive agent of OBO Bettermann in the fields of consultation, sales and distribution of power industry products including Cable routing systems (LFS) is active.

Products

Floor Socket with Stainless Steel Lid

Model: UDHOME2 Order code: UDHOME2 BV V

The scope of delivery contains a double protective contact socket (VDE). Up to two modular data sockets (Keystones) can be installed with optional mounting supports. Square floor socket for use in dry-care cavity and screed floors. Installation housing with pre-marked insertion openings for pipelines (M25).

Show Detail

Floor Socket with Stainless Steel Lid

Model: UDHOME2 Order code: UDHOME2 BV

Square floor socket for use in dry-care cavity and screed floors. Installation housing with pre-marked insertion openings for pipelines (M25). Up to two Modul45 sockets can be installed. In addition, up to two modular data modules (Keystones) can be installed with optional mounting supports. Surfaces visible in the floor covering made of: Brushed stainless steel.

Show Detail

floor socket with floor covering recess

Model: UDHOME2 Order code: UDHOME2 V V

The scope of delivery contains a double protective contact socket (VDE). Up to two modular data sockets (Keystones) can be installed with optional mounting supports. Square floor socket with floor covering recess for use in dry-care cavity and screed floors. Installation housing with pre-marked insertion openings for pipelines (M25).

Show Detail

Freely Equippable Floor Socket with Floor Covering Recess

Model: UDHOME2 Order code: UDHOME2 V

Square floor socket for use in dry-care cavity and screed floors. Installation housing with pre-marked insertion openings for pipelines (M25). Up to two Modul45 sockets can be installed. In addition, up to two modular data modules (Keystones) can be installed with optional mounting supports. Surfaces visible in the floor covering made of: Brushed stainless steel.

Show Detail

floor socket with tube body for wet cleaned floors

Model: UDHOME2 Order code: UDHOME2 AF V

The scope of delivery contains a double protective contact socket. Up to two modular data sockets (Keystones) can be installed with optional mounting supports. Installation housing with pre-marked insertion openings for pipelines (M25).

Show Detail

Freely Equippable Floor Socket with Tube Body for Wet Cleaned Floors

Model: UDHOME2 Order code: UDHOME2 AF

Square floor socket for use in wet-care cavity and screed floors. Installation housing with pre-marked insertion openings for empty pipelines (M20/M25). Up to two Modul45 sockets can be installed. Up to two modular data sockets (Keystones) can be installed with optional mounting supports.

Show Detail

Snap-in data connection module

Model: Cat. 5e Order code: ASM-C5 S

Connection module Cat. 5e unshielded, with a RJ45 slot. Including a dust cover, a cable tie, a snap-in fastening frame and mounting instructions. Suitable for installation in support plates, type MTM 2C and MTM 3C, mounting plate type MPR2 2C, mounting support type MTGE2 2C, MTGE2 15 2C and MTGE2 F 2C.

Show Detail

Snap-in data connection module

Model: Cat. 5e Order code: ASM-C5 GS

Connection module Cat. 5e shielded, with a RJ45 slot. Including an EMC screen hood, a dust cover, a cable tie, a snap-in fastening frame and mounting instructions. Suitable for installation in support plates, type MTM 2C and MTM 3C, mounting plate type MPR2 2C, mounting support type MTGE2 2C, MTGE2 15 2C and MTGE2 F 2C.

Show Detail

OBO Snap-in data connection module

Model: Cat. 6 Order code: ASM-C6 S

Connection module Cat. 6 unshielded, with a RJ45 slot. Including a dust cover, a cable tie, a snap-in fastening frame and mounting instructions. Suitable for installation in support plates, type MTM 2C and MTM 3C, mounting plate type MPR2 2C, mounting support type MTGE2 2C, MTGE2 15 2C and MTGE2 F 2C.

Show Detail

Snap-in data connection module

Model: Cat. 6 Order code: ASM-C6 GS

Connection module Cat. 6 shielded, with a RJ45 slot. Including an EMC screen hood, a dust cover, a cable tie, a snap-in fastening frame and mounting instructions. Suitable for installation in support plates, type MTM 2C and MTM 3C, mounting plate type MPR2 2C, mounting support type MTGE2 2C, MTGE2 15 2C and MTGE2 F 2C.

Show Detail

Unshielded Data Connection Module

Model: Cat. 6A Order code: ASM-C6A

Connection module Cat. 6A (ISO) unshielded, with a RJ45 slot. Including a dust cover, a cable tie, a Keystone fastening frame and mounting instructions. Suitable for installation in the data technology supports of type DTG-2C and DTS-2C, support plate of type MTM 2C and MTM 3C, mounting plate of type MPR2 2C, mounting supports of type MTGE2 2C, MTGE2 15 2C and MTGE2 F 2C.

Show Detail

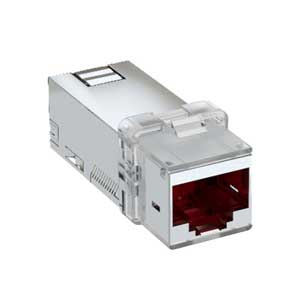

Shielded Data Connection Module

Model: Cat. 6A Order code: ASM-C6A G

Connection module Cat. 6A (ISO) shielded, with a RJ45 slot. Including an EMC screen hood, a dust cover, a cable tie, a Keystone fastening frame and mounting instructions. Suitable for installation in the data technology supports of type DTG-2C and DTS-2C, support plate of type MTM 2C and MTM 3C, mounting plate of type MPR2 2C, mounting supports of type MTGE2 2C, MTGE2 15 2C and MTGE2 F 2C.

Show Detail
