Stainless steel Systems are a component of cable transmission and protection systems . These systems have been made by stainless steel with grades 304 and 316 . The products of Stainless steel Systems are divided below sections : -Cable tray systems -Cable ladder systems - Mesh tray cable systems -Wide span cable ladder, side height 110 mm -Wide span cable tray, side height 110 mm -Wide span cable tray, side height 160 mm -Vertical cable ladder systems -Modular systems -Mounting systems Bornika is the exclusive agent of OBO Bettermann in the fields of consultation, sales and distribution of power industry products including Stainless steel Systems is active.

User visits: 0

Products
  • Model: RKSM
  • Order code: RKSM VA4301 , RKSM VA4571
  • Brand:
  • Country: Germany
  • Cable tray with quick connection system, including all the relevant connection components for time-saving and economic installation, with beaded straight base perforation, 7 x 20 mm, for bracket mounting and, from the width 200 mm, with 7 x 32 mm transverse beading for cable ventilation and simplified mounting.

  • Model: SKSM
  • Order code: SKSM VA4301 , SKSM VA4571
  • Brand:
  • Country: Germany
  • Cable tray with quick connection system, including all the relevant connection components for time-saving and economic installation, with beaded straight base perforation, 7 x 79 mm, for bracket mounting. All widths with cross beading for stabilisation and duct ventilation. Continuous side perforation, 7 x 20 mm, as additional connector perforation.

  • Model: SKSMU , MKSMU
  • Order code: MKSMU VA4301 , SKSMU VA4301
  • Brand:
  • Country: Germany
  • Unperforated cable tray with quick connection system, including all the relevant connection components for time-saving and economic installation. The stock length is 60 mm, the usable length when combined is 60 mm.

  • Model: MKS
  • Order code: MKS VA4301
  • Brand:
  • Country: Germany
  • Medium-duty cable tray system with a side height of 60 mm.

  • Model: MKSU
  • Order code: MKSU VA4301
  • Brand:
  • Country: Germany
  • Medium-duty cable tray system with a side height of 60 mm. The cable tray has connector perforations on both sides.

  • Model: DKS
  • Order code: DKS VA4571
  • Brand:
  • Country: Germany
  • Permeable cable tray system to VdS guideline 2092 with 30% hole surface for use under sprinkler systems. Bottom penetration from width 200 mm. Connecting parts should be ordered in the appropriate quantity.

  • Model: MKSM
  • Order code: MKSM VA4301
  • Brand:
  • Country: Germany
  • Cable tray with quick connection system, including all the relevant connection components for time-saving and economic installation, with beaded straight base perforation, 7 x 79 mm, for bracket mounting. All widths with cross beading for stabilisation and duct ventilation. Continuous side perforation, 7 x 20 mm, as additional connector perforation.

  • Model: MKS
  • Order code: MKS VA4301
  • Brand:
  • Country: Germany
  • Medium-duty cable tray system with a side height of 110 mm. The cable tray is fastened to the bracket with screws, type FRS M6 x 12.

  • Model: MKSMU
  • Order code: MKSMU VA4301
  • Brand:
  • Country: Germany
  • Medium duty Magic cable tray system, unperforated with a side height of 110 mm. Unperforated cable tray with quick connection system, including all the relevant connection components for time-saving and economic installation. The stock length is 60 mm, the usable length when combined is 60 mm.

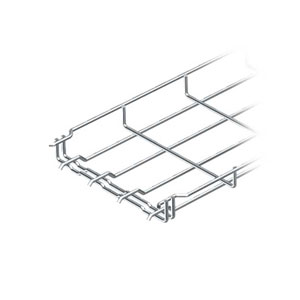

  • Model: GRM 35
  • Order code: GRM 35 VA4301 , GRM 35 VA4401
  • Brand:
  • Country: Germany
  • Magnetic shield insulation without cover 15 dB, with cover 25 dB. Mesh cable tray with shaped connector of side height 35 mm. No additional connection components are required for the mesh cable tray, it is simply interlocked. The grid width is 50 x 100 mm (exception: GRM 35/50 = 20 x 100 mm).

  • Model: GRM 55
  • Order code: GRM 55 VA4301 , GRM 55 VA4401
  • Brand:
  • Country: Germany
  • Magnetic shield insulation without cover 15 dB, with cover 25 dB. Mesh cable tray with shaped connector of side height 55 mm. No additional connection components are required for the mesh cable tray, it is simply interlocked. The grid width is 50 x 100 mm (exception: GRM 55/50 = 20 x 100 mm).

  • Model: GRM 105
  • Order code: GRM 105 VA4301 , GRM 105 VA4401
  • Brand:
  • Country: Germany
  • Magnetic shield insulation without cover 15 dB, with cover 25 dB. Mesh cable tray with shaped connector of side height 105 mm. No additional connection components are required for the mesh cable tray, it is simply interlocked. The grid width is 50 x 100 mm (exception: GRM 105/50 = 20 x 100 mm).
