Stainless steel Mesh Cable Tray Side Height 55mm

GRM 55 VA4301 , GRM 55 VA4401

    • Model
    • GRM 55

    • Order code
    • GRM 55 VA4301 , GRM 55 VA4401

    • Country
    • Germany

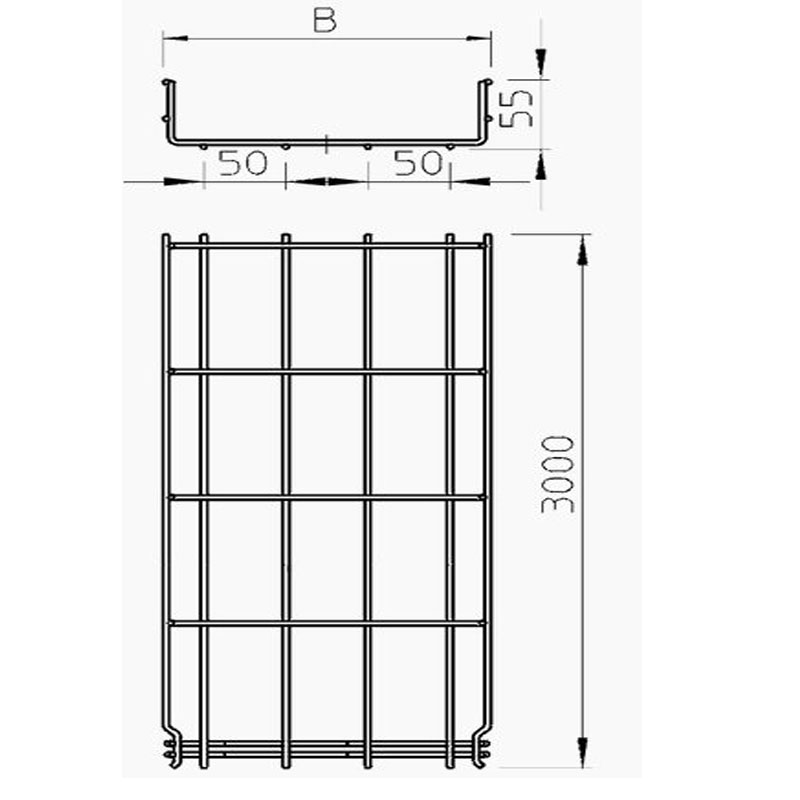

  • Magnetic shield insulation without cover 15 dB, with cover 25 dB. Mesh cable tray with shaped connector of side height 55 mm. No additional connection components are required for the mesh cable tray, it is simply interlocked. The grid width is 50 x 100 mm (exception: GRM 55/50 = 20 x 100 mm). Bornika is the exclusive agent of OBO Bettermann in the fields of consultation, sales and distribution of power industry products including Stainless steel Mesh Cable Tray Side Height 55mm is active.

  • Visits: 0
Downloads
Accessories

Barrier strip

Barrier strip connector

Hold-down clamp for barrier strip fastening

Quick connector

Joint connector

Joint connector

Hold-down clamp

Hold-down clamp

Beam clamp, vertical

Beam clamp, horizontal

Hook screw

Flange nut

Hold down clip

Corner connector

Wall clamp / central hanger

Wall clamp for GRM 35 50

Side holder

Threaded rod

Central hanger

Central suspension

Wall bracket / mounting plate

Drop-out plate

Cover

Cover clamp, universal

Related products
Specifications
    • Dimensions
    • Length : 3 m Width : 50 , 100 , 150 , 200 , 300 , 400 , 500 and 600 mm Wire diameter : 3.9 and 4.8 mm Usable cross-section : 16 to 265 cm²

    • material
    • V2A : Stainless steel, grade 304 V4A : Stainless steel, grade 316

More details
  • Ordering code - Item No:
  • GRM 55 50VA4301 - 6001 07 0 GRM 55 100VA4301 - 6001 07 2 GRM 55 150VA4301 - 6001 07 4 GRM 55 200VA4301 - 6001 07 6 GRM 55 300VA4301 - 6001 07 8 GRM 55 400VA4301 - 6001 08 0 GRM 55 500VA4301 - 6001 08 2 GRM 55 600VA4301 - 6001 08 5 GRM 55 50VA4401 - 6001 08 7 GRM 55 100VA4401 - 6001 08 8 GRM 55 150VA4401 - 6001 09 0 GRM 55 200VA4401 - 6001 09 1 GRM 55 300VA4401 - 6001 09 3 GRM 55 400VA4401 - 6001 09 5 GRM 55 500VA4401 - 6001 09 7 GRM 55 600VA4401 - 6001 09 9
